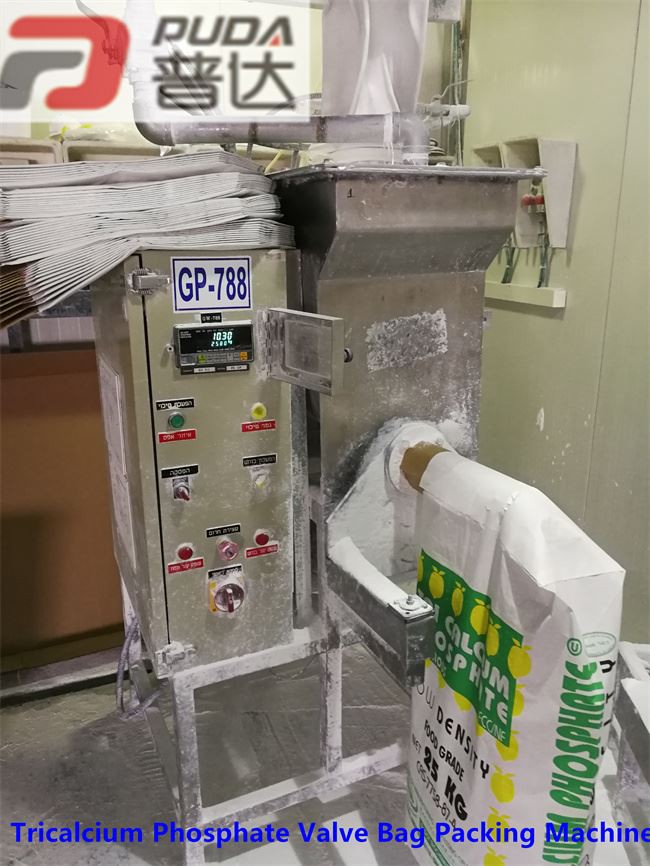

Tricalcium Phosphate Valve Bag Packing Machine

I. Design indicators and operating environment:

1. Operating environment:

Operating temperature: 5℃ ~ 50℃, material temperature: ≤50℃, feeding mode: continuous and uniform feeding for packaging machine. Dust removal: Puda's packing machine is connected with the pipe of dust collector

2. Natures of materials:

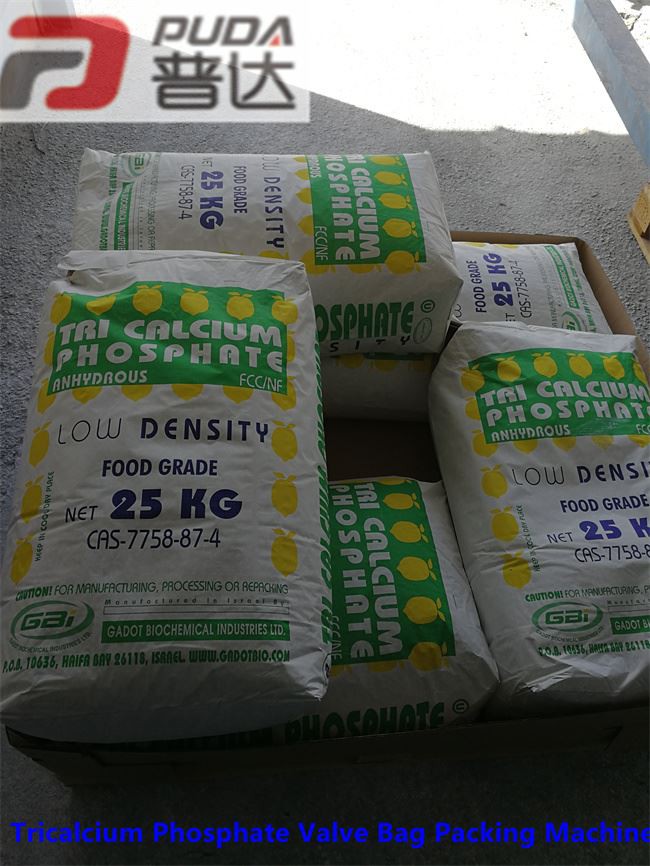

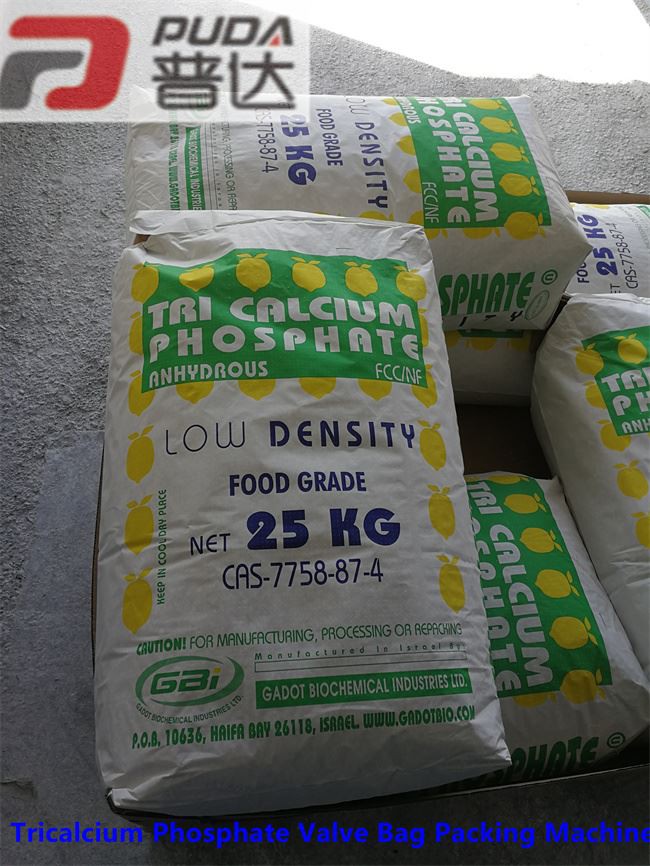

Material name: tricalcium phosphate, particle size: 10P μm, bulk density: 200-300 Kg/m³, large gas content; Color: White

3.Packing time: 24 hours continuous operation or intermittent operation design service life.

4.包装指数和功能（工作台）：称重范围：25㎡/包，包装能力：60袋/小时，称重误差：≤±100-200g

II. Supply requirements

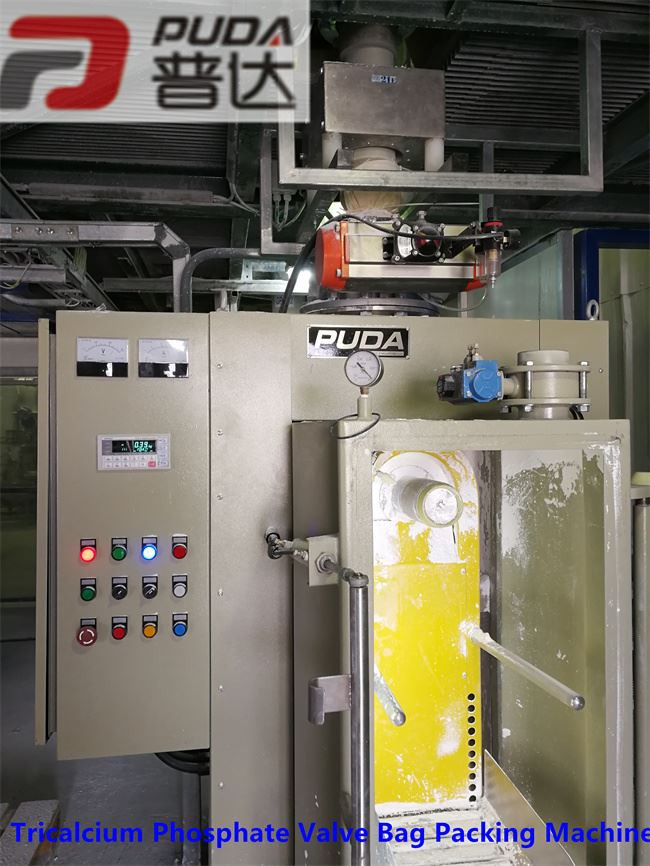

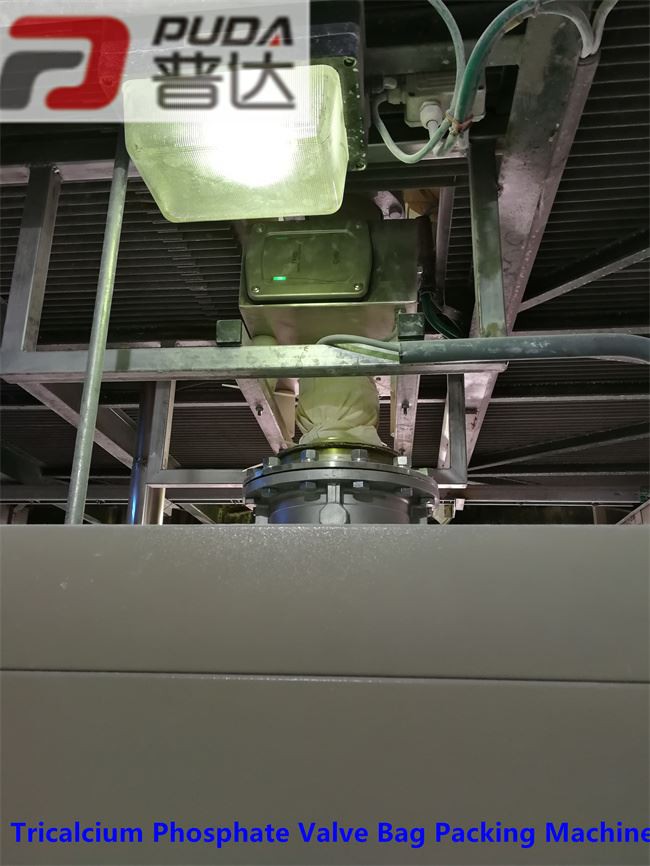

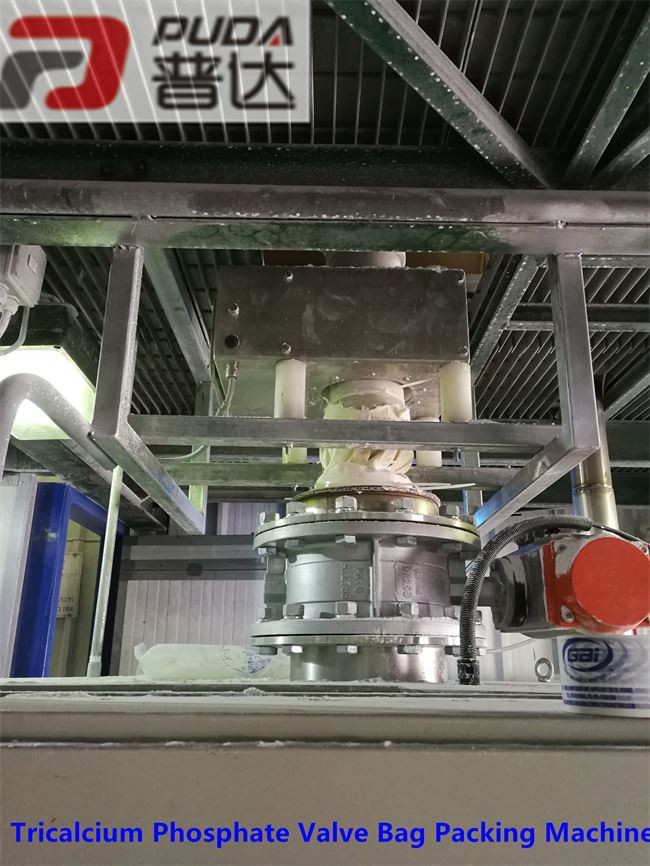

1. Equipment name: Vacuum valve pocket packing machine (DC-FZKJ), quantity: one set

(1) Feeding method: single screw single stirring vacuum type

(2) Bag size: length 715 mm× width 395 mm× thickness 200 mm, bag mouth size 160mm.

(3) Packing bag material: breathable valve pocket, the bag wall has breathable staggered microholes.

(4) The equipment is well sealed for easy inspection and maintenance;

III: Material of machine:

(1) All parts in contact with the material are 316 stainless steel, and the other mechanical parts are divided into carbon steel materials. The surface of carbon steel materials is sandblasted and phosphating after electrostatic spraying or chrome plating, and the color is ivory white.

Note: the sponge strip should be changed to white silicone food grade, and the connectors and sealing rings should also be white.

Installation, operation and maintenance instructions, packing list, supporting single machine instruction, certificate and attached drawings, because you may not go to the site installation and debugging, the instructions should be as detailed as possible. All materials should be provided in English.

General knowledge about packing material:

Calcium phosphate tribasic, chemical formula Ca3(PO4)2, is a white crystal or amorphous powder, insoluble in ethanol and acetone, insoluble in water, soluble in dilute hydrochloric acid and nitric acid. Commonly used as anti-knot agent, acidity regulator, nutritional supplement, deodorant, stabilizer, water retention agent.
