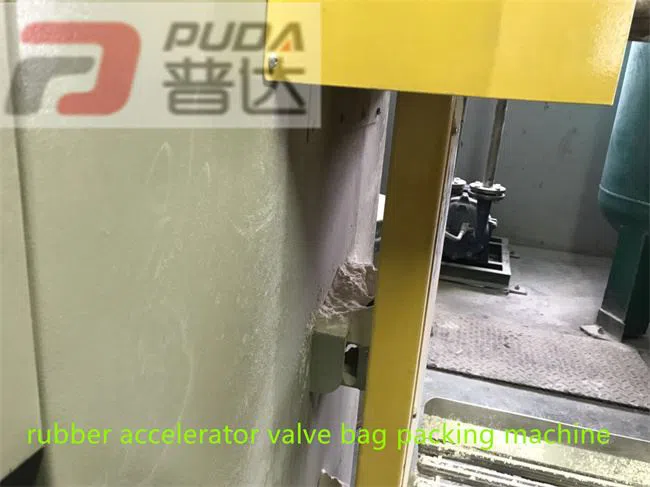

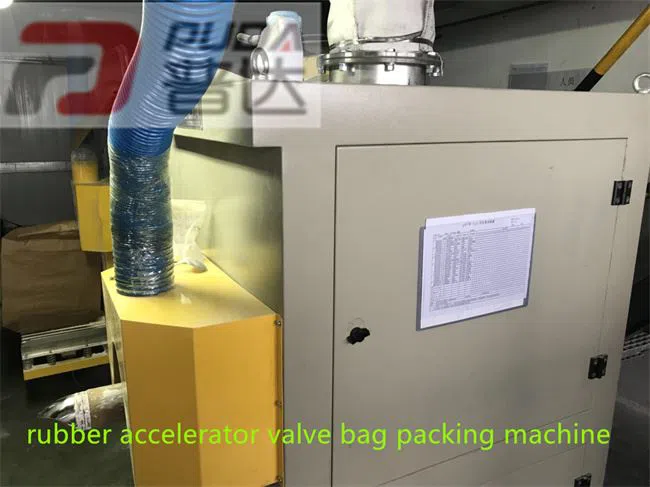

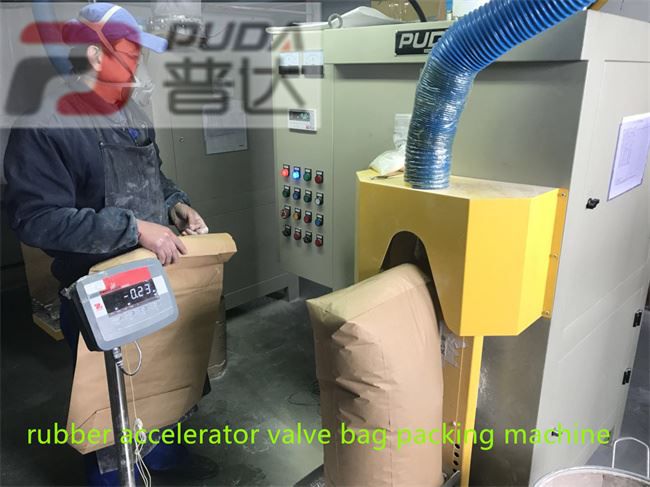

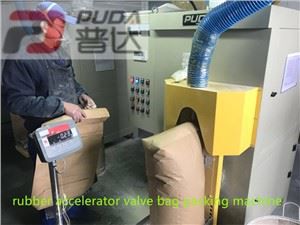

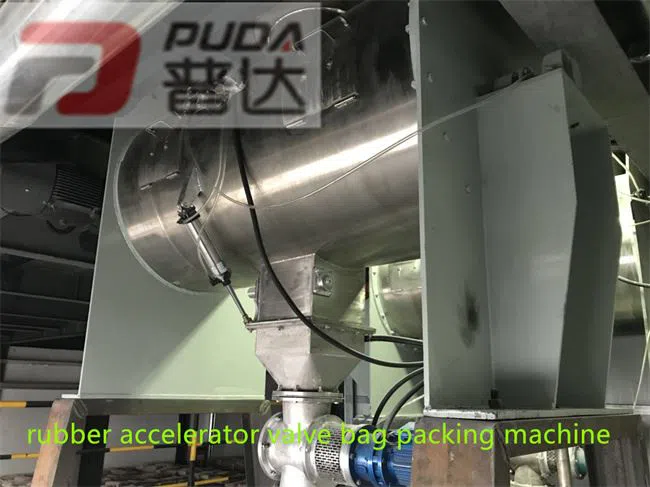

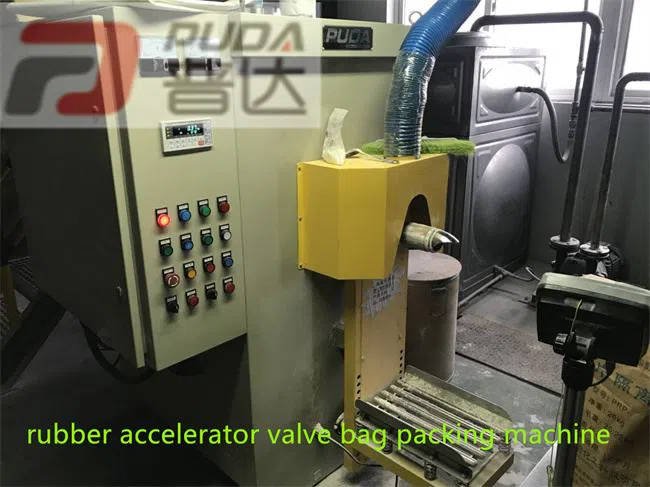

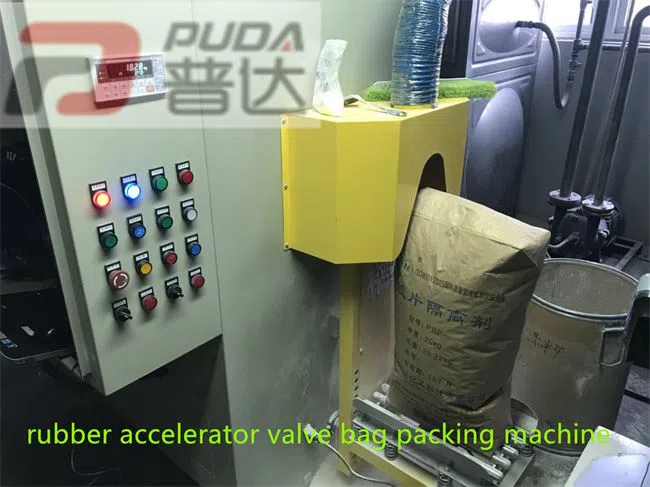

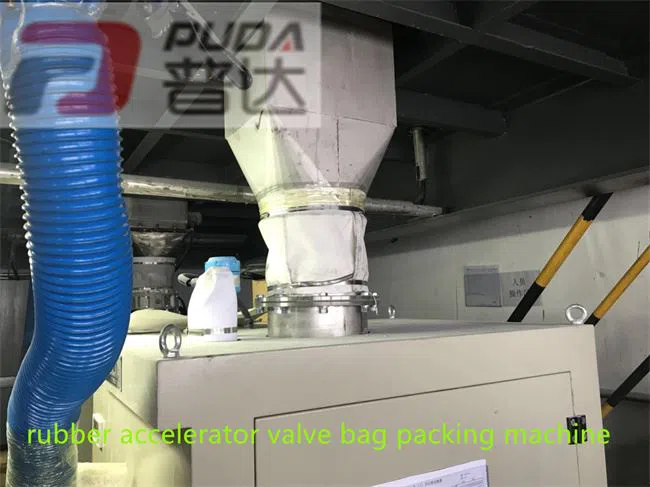

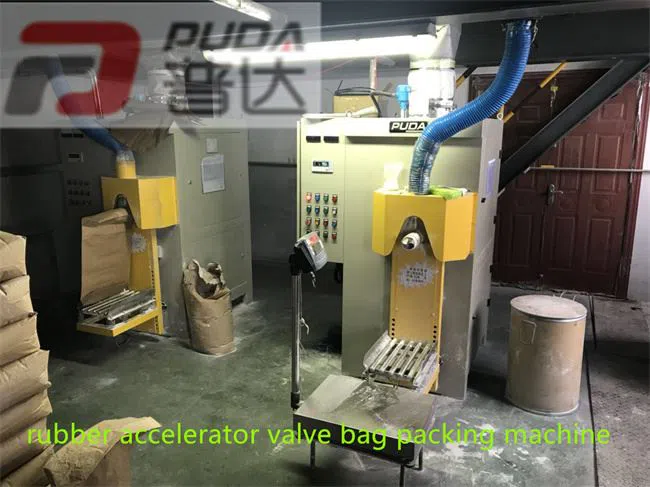

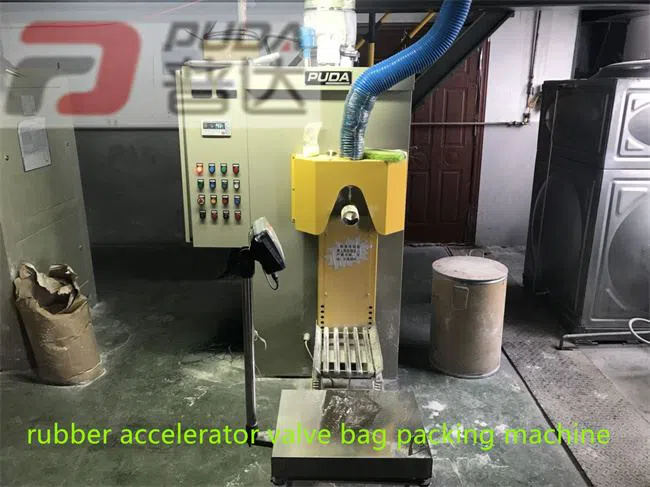

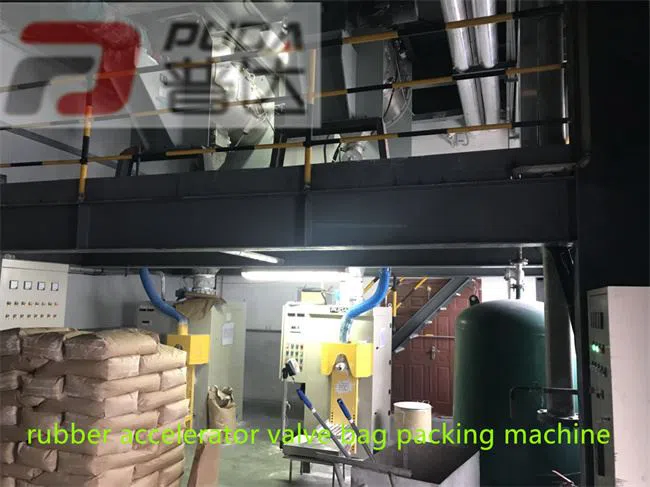

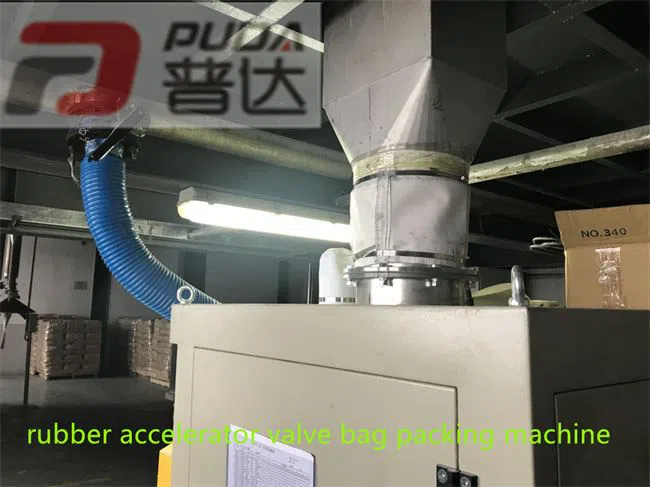

橡胶加速器阀袋包装机

I. Operating indicators and operating conditions

1.操作条件

Operating temperature: 0℃ ~ 40℃

Material temperature: ≤40℃

2. Material nature

Material name: Rubber additive

谷物学位：网眼

Reactor specific weight: 500kg/m³

Water content: about 1 %

流动性：良好的流动性和较大的气体含量

3. Operation mode

Can run continuously for 24 hours or intermittently.

4.包装索引（设置）

Weighing range: 20㎏/bag

包装容量：90-120袋/小时

Weighing error: 20kg≤±100g

Ii. Supply requirements

1. Equipment name: Valve pocket packing machine (DC-FYSH)

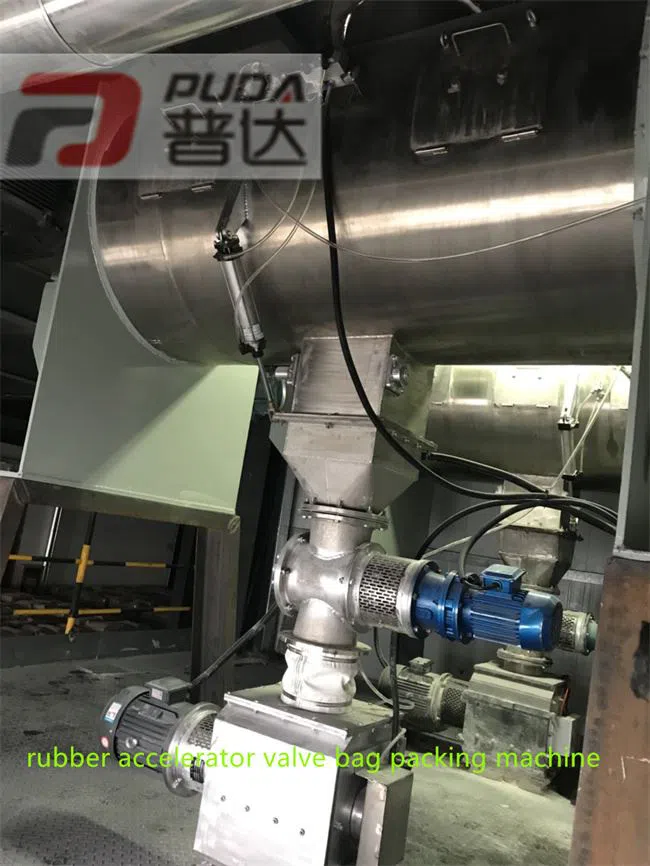

(1) Feeding method: impeller feeding

(2) The size of the discharging mouth of the packaging machine: diameter φ 76 mm

(3) Bag bag: field use bag specifications 20 kg valve pocket, the material is paper bag or plastic, the outer bag has pinhole, the inner bag should have good air permeability, size: bag height 600 mm bag width: 370mm thick 140mm bag outer cuff length 100mm, inner cuff length 100mm~110mm, inner groove bag

(4) The equipment is well sealed for easy inspection and maintenance;

(5) Total weight of equipment: ≤750kg/ set

(6) Power supply: AC 380V 50Hz 7.5KW

(7) Instrument power supply: AC 220V 50Hz 500W

(8)大小的包装achine: Refer to the drawing.

The buyer provides as follows:

Public engineering power supply: three-phase 4-wire, AC380 50Hz, total design power: ≤ 13.75KW/set (including crusher motor power and rotary valve motor power provided by the buyer) provided by the user

Total design air consumption: 0.3m3 / min (compressed air) air source pressure ≤ 0.8mpa

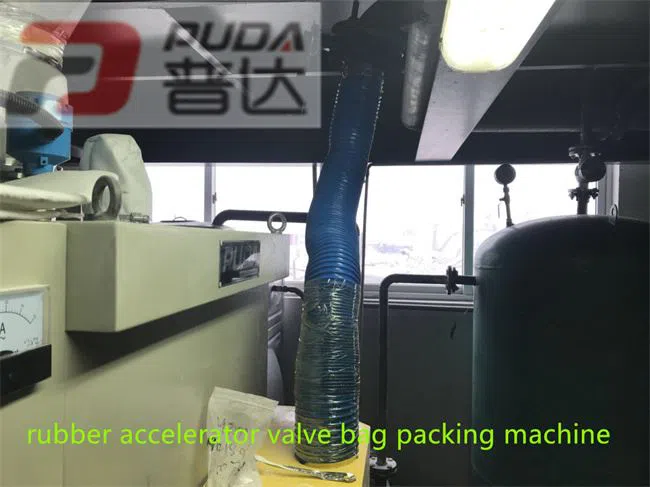

The equipment is reserved for dust removal, and the buyer provides the negative pressure recovery pipeline; Air pressure :2000Pa Air volume :600m3/h

机器功能

1. All stainless steel cover meets to CCC Standard.
2. Equipped with antipollution and dustproof device
3. At the ends of cross sealed of inner and outer bags have oiling holes, regular oil guarantees that the machine operate lubricating, adequate lubrication can reduce the failure rate and improve the service life of the machine
4. The maximum advantage of this machine is that the feeding structure inside the machine beyond the traditional feeding form, greatly improve the rates of the threads and tags which make the rates of threads and pre-print on about 98-99%
5.最小密封温度变化采用PID温度，公差控制±2％。
6.Have gained the European CE certification.

Puda machines range from individual equipment to automated systems that are suitable to mineral, metallurgy, agriculture, Industrial chemical and food.

Among those, vacuuming valve packing machines for titanium dioxide, oxide,nickel,active carbon, carbon black, chemicals calcium carbonate, hydroxide,fertilizer, Kaolin, Talc powder, cobalt oxide, bentonite , perlite addictive, graphite, stearate, tombarthite, graphite, refractory materials, Color Master batch, zinc oxide, talcum powder, xanthan gum, gypsum powder, caly,cobalt powder, adhesive, plastics particles and other chemical powders and building materials are our patent best sellers.
