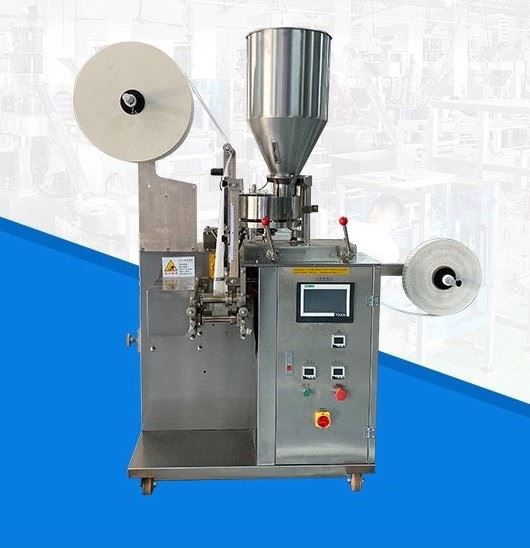

Double Chamber Tea Bag Packing Machine

Double Chamber Tea Bag Packing Machine Price

PUDA tea bag packing machine features:

1. High sensitivity color full touch screen, microcomputer controller to control the operation of the whole machine, Chinese and English display interface, easy and fast parameter adjustment.

2. The measurement method can be selected according to the material form. The particles are measured by measuring cup volume type, and the measuring cup is balanced lifting frame, which can keep the weight of grams stable at the same time, and can be adjusted micro; Powder is measured by horizontal screw, and the weight of packing gram is adjusted by motor control.

3.PID温度控制独立控制器,temperature control, ensure sealing quality, and suitable for a variety of packaging materials.

4. The length of the outer bag can be adjusted at will, and the cursor tracking bag length can be set in the display screen. The stepping motor controls the paper sealing without manual adjustment on the machine.

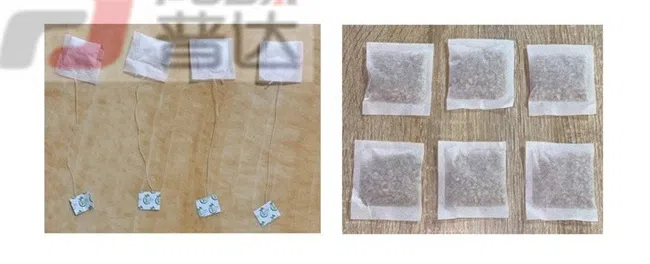

5. Label, the hanging line can be separated automatically, the machine can make the hanging line and hanging label inside and outside tea bag, also can make the inside and outside tea bag without the thread and without the label.

6. The machine can be equipped with additional devices to complete the functions of flat cutting, date printing, easy tearing, nitrogen filling, beating, mixing, vibration, label tracking and positioning

7. All functions of blanking, sealing and inner and outer bags of the machine are independently controlled, which can be separated only by operating the separation handle, which is convenient for debugging and maintenance, and can be operated safely.

8. This series of machine stainless steel exterior decoration, all parts in contact with the material to be packed are made of SU304 stainless steel or material, safe, in line with food QS(production license) and pharmaceutical GMP (pharmaceutical packaging) health requirements.

9. This series of machines are equipped with automatic fault display function to help timely troubleshooting

Packaging range forDouble Chamber Tea Bag Packing Machine:

This series of machine is suitable for packing filterable small particles and powder materials such as tea, coffee, Chinese herbal medicine, decoction pieces and plants.

Packaging materials：

1. Inner bag: food grade filter paper, conventional specification: 110mm, 125mm, 145mm, 160mm.

2. Requirements of the composite film for the outer bag: polypropylene, aluminum foil, aluminum plating, nylon and other materials can be used as the base material, and the inner coating is made of composite high-pressure polyethylene. The thickness is generally 7-9 silk, and it must have heat sealing property, the cursor point is 10mmX5mm and the color difference is large with the background color. Conventional specifications: 145mm, 160mm, 180mm. (Generally for bright light aluminum plating film)
