5-25kg/h Bags Packaging Equipment

5-25kg/h Bags Packaging Equipment with best price

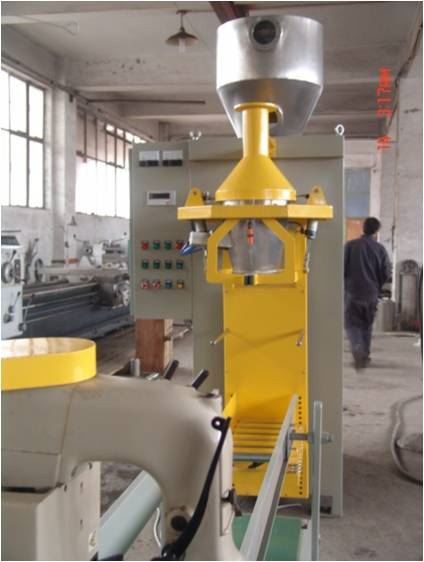

Machine description:

Quantitative packing scale is mainly composed of automatic weighing device, conveying device, sewing device and computer controller. Display set weight, total number of packages, working status and other procedures. The device adopts fast, medium and slow three speed feeding and special feeding auger structure, advanced digital frequency conversion control technology, advanced sampling processing, anti-interference technology, and automatic error compensation and correction, to ensure higher weighing accuracy. The biggest characteristic of this product is through the processing of computer software, to solve the same products in the past can not solve the problem, that is, pneumatic card open, material generation landing, powder overflow phenomenon, showing its higher scientific and technological content and accuracy is incomparable in similar products.

Main technical parameters of 5-25kg/h Bags Packaging Equipment:

Packing weight range: 20-80kg/ bag

Packing quantity range: 6-8 bags/min

Power: 23KW

Dimensions: 4000mm*2000mm*4000mm

Accuracy: OILMR61*(0.2) grade

5-25kg/h Bags Packaging Equipment features:

1) Electrostatic spraying production process is adopted

2) Independent suspension sensor, stable signal transmission, ensure weighing accuracy

3) The host adopts frequency conversion technology

4) Host, transmission belt, sewing machine, controller network, to ensure humanized operation, reduce labor intensity

5) To solve the phenomenon of powder overflow and bag turning when the pneumatic card of similar products opens the bag

6) Infrared sensor, servo feeding, more energy saving

7) Automatic storage of shift production, daily production and accumulated output

Packing machine use process: manual assistance bag, automatic weighing, bag clamping, filling, conveyor belt transmission for automatic sealing or sewing package.
