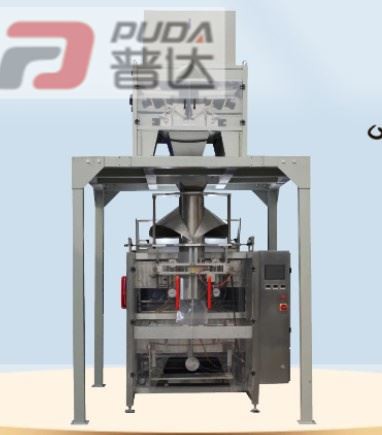

1公斤,2公斤,5公斤袋粉Packing Machine

1公斤,2公斤,5公斤袋粉Packing Machine Made in China

Material and processing requirements:

1. All parts in contact with materials are made of 304 stainless steel. 2. The welding seams of the equipment are polished and the inner and outer surfaces are polished.

3. The system is sealed and dust-proof. The silo, filling device and electric control box of the measuring scale are sealed and dust-proof.

Main technical specifications of 1kg 2kg 5kg Bag Powder Packing Machine:

(1)包装材料:powdery materials

(2) Packing weight :1-5-25-50kg/ bag

(3) Packing speed :4-6 packets/min

(4) Packaging accuracy: 0.3%

Working principle of 1kg 2kg 5kg Bag Powder Packing Machine:

The material is added to the weighing bucket by the feeding mechanism (twisted-dragon), the controller receives the weight signal of the sensor, according to the preset program value control, open the cutting door, fast (twisted-dragon at the same time) feeding, when the weight =(target value - precision measurement value), the big twisted-dragon stop feeding, into the slow speed (small twisted-dragon) feeding; When the weight =(target value - overimpulse value), the small cutter stops feeding, the cutting door is closed, and the fixed value weighing is completed. After the bag signal is input, the unloading door of the weighing bucket will automatically open, and when the weight < When the zero position is set, the unloading door of the weighing bucket will automatically close, and after the automatic vibration bag (optional action), the material bag will automatically loosen into the conveyor belt and be sent to the seamer to sew the bag and then enter the next process. At the same time, the controller will enter the next control cycle.

Features of 1kg 2kg 5kg Bag Powder Packing Machine:

☆ High weighing accuracy: the size of three spiral feeding speed, frequency control effectively solve the contradiction between speed and precision.

☆ Simple and quick operation: instrument or touch screen quickly set parameters.

☆ Compact structure and easy installation: floor mounted structure, connected to the power and air source can work.

☆ Reasonable design and easy maintenance: double door structure, easy to clean and maintain.

☆ Unique pulse gas injection function, effectively solve the powdery material wall sticking problem.
