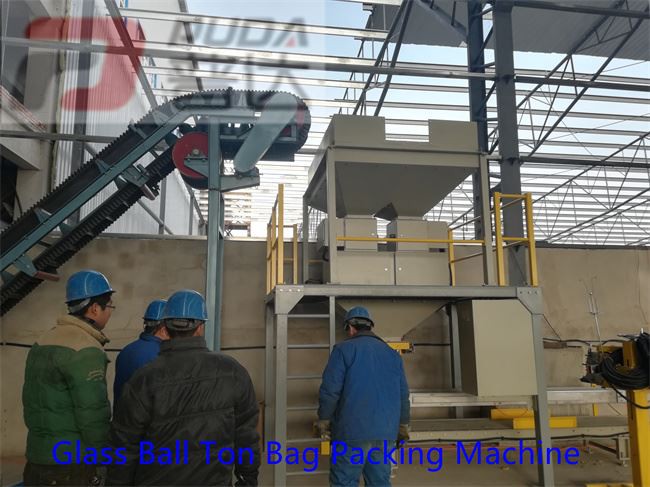

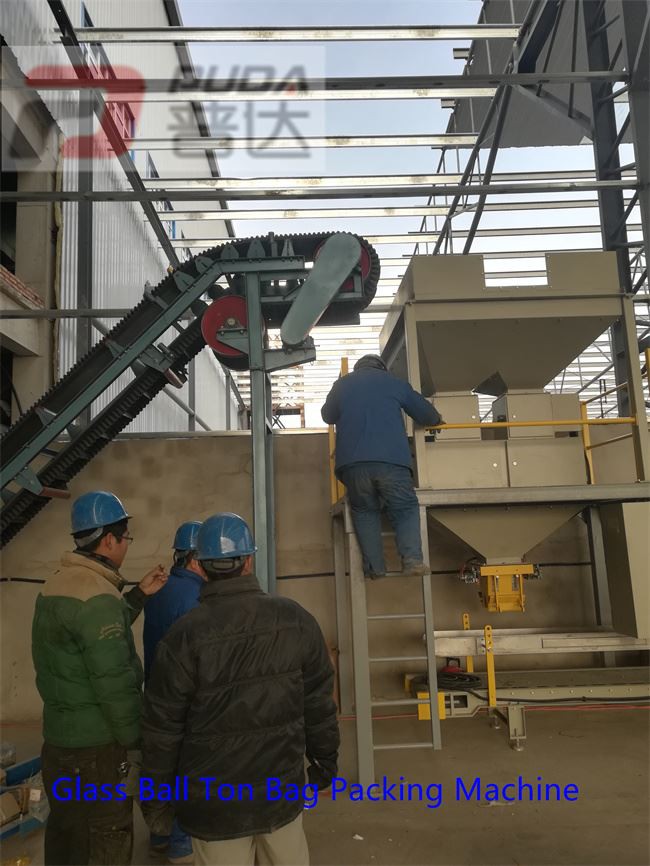

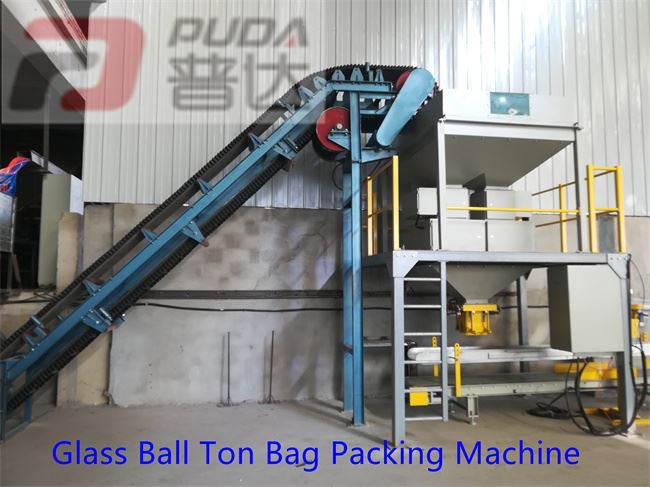

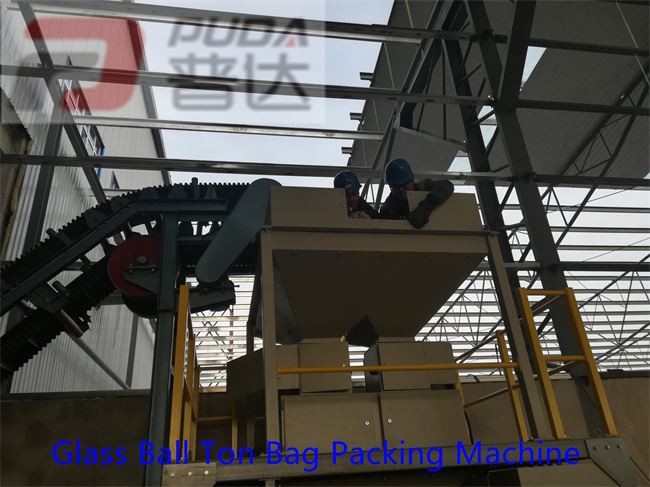

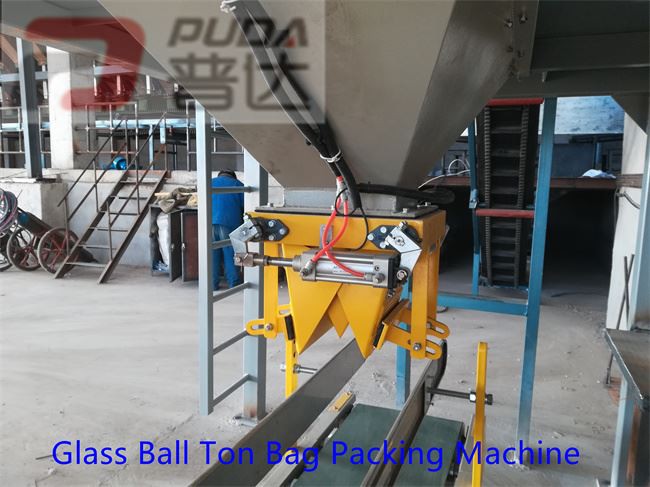

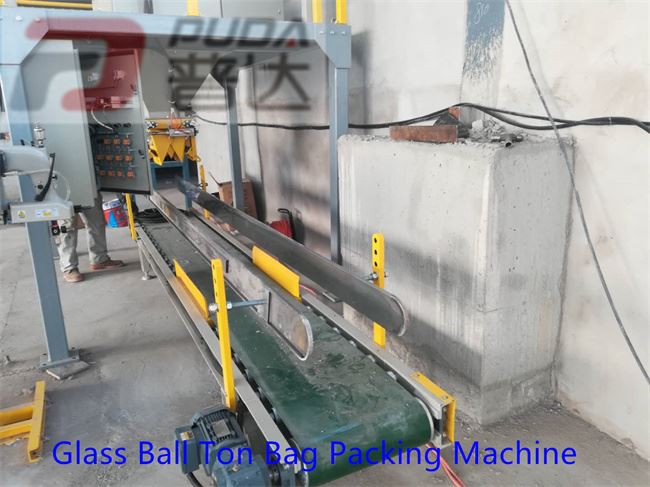

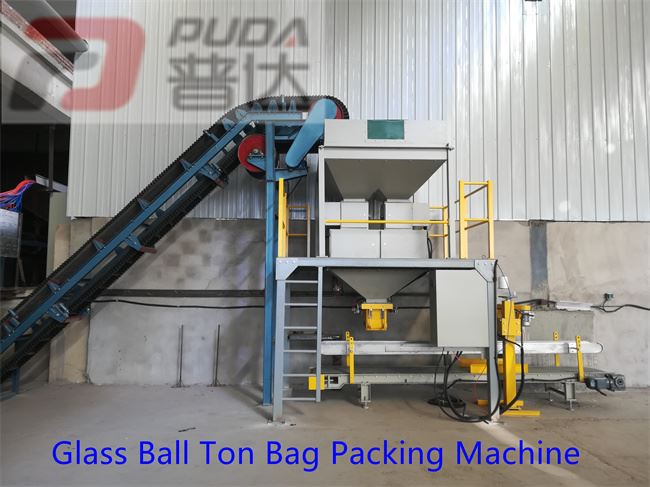

Glass Ball Ton Bag Packing Machine

I. Operating indicators and operating conditions

1. Operating conditions

Operating temperature: -25 ° C to 40 ° C

2. Material nature

Material name: Glass ball size: 22mm

Fluidity: Good

3. Operation mode

The bin on the packing machine can supply the material for the packing machine evenly and stably. The packing machine can run continuously for 24 hours or intermittently.

4. Packaging index (set)

Weighing range: 1000-2000kg/bag

Packing capacity: ≥15 bags/hour

Weighing error: ≤±1%

ii. Supply requirements

1. Equipment name: Gravity ton bag Packing Machine (DC-TWZL)

(1) Feeding method: self-flow

(2) Discharging nozzle size of packaging machine:

(3) Bags: 1*1*1 m.

(4) The equipment is well sealed for easy inspection and maintenance;

(5) Total weight of equipment: ≈4 tons/set

(6) Power supply: AC 380V 50Hz 4Kw

(7) Instrument power supply: AC 220V 50Hz 500W

(8)大小的包装achine: Refer to the drawing.

(9) Design bag size: 1*1*1 m

iii. Material

1. The material of the packaging machine is carbon steel, the surface is sandblasted and phosphating, and the surface is sintered by electrostatic spraying. Color ivory.
